9kW 3-Phase Industrial Infrared Heater with IP65 for Large Work Areas

The 9kW Infrared Industrial Heater is a high-performance, energy-efficient heating solution engineered for large industrial and commercial environments. Designed for three-phase power systems, it delivers instant, targeted radiant heat directly to people and objects—without wasting energy heating the surrounding air.

With a total heat coverage of 43.65 m², this powerful heater uses six ultra-low-glare 382 mm infrared lamps to deliver consistent and comfortable warmth across large areas such as warehouses, factories, workshops, and open industrial spaces.

The  9kW operates using short-wave infrared technology, which penetrates airflow to provide fast and efficient heating even in drafty environments. Built with robust construction, IP65 protection, and versatile mounting options, it ensures reliable operation in demanding conditions—while offering over 90% energy savings compared to conventional air-based systems.

Key Features

• Instant Heat Output – Provides rapid, radiant warmth directly to people and objects.
• Energy Efficient Performance – Achieves over 90% energy savings compared to traditional convection systems.
• Ultra-Low-Glare Lamps – Six industry-leading 382 mm lamps offer high heat output with reduced visible light.
• 3-Phase Power Supply – Ensures balanced energy distribution and efficient performance for industrial setups.
• Large Coverage Area – Effectively heats up to 43.65 m², ideal for large or open-plan spaces.
• IP65 Rating – Dust and moisture resistant, suitable for indoor or sheltered outdoor environments.
• Robust Aluminium Construction – Built for durability in harsh industrial and commercial settings.
• Flexible Mounting Options – Wall or ceiling mounting for optimal positioning and space efficiency.
• Zoning and Control Ready – Compatible with advanced heating controllers for energy optimisation.
• Low Maintenance Design – Long lamp life and minimal servicing requirements.

Applications

The  9kW Infrared Industrial Heater is ideal for a wide range of industrial, commercial, and semi-outdoor environments, including:

• Warehouses and distribution centres
• Manufacturing and assembly lines
• Workshops and vehicle bays
• Sports halls and gymnasiums
• Agricultural facilities and barns
• Logistics and storage facilities
• Event spaces and exhibition halls
• Retail and commercial units

Perfect for zone heating and environments requiring instant, controllable warmth without air movement or heat loss.

Technical Specifications

• Model:  9kW Infrared Industrial Heater
• Voltage: 220–240 V AC
• Phase Supply: 3 Phase
• Total Power Output: 9 kW
• Lamps: 6 × 1.5 kW short-wave infrared (ultra-low-glare, 382 mm)
• Coverage Area: 43.65 m²
• Current per Phase: 14 A
• Ingress Protection: IP65 (dust- and water-resistant)

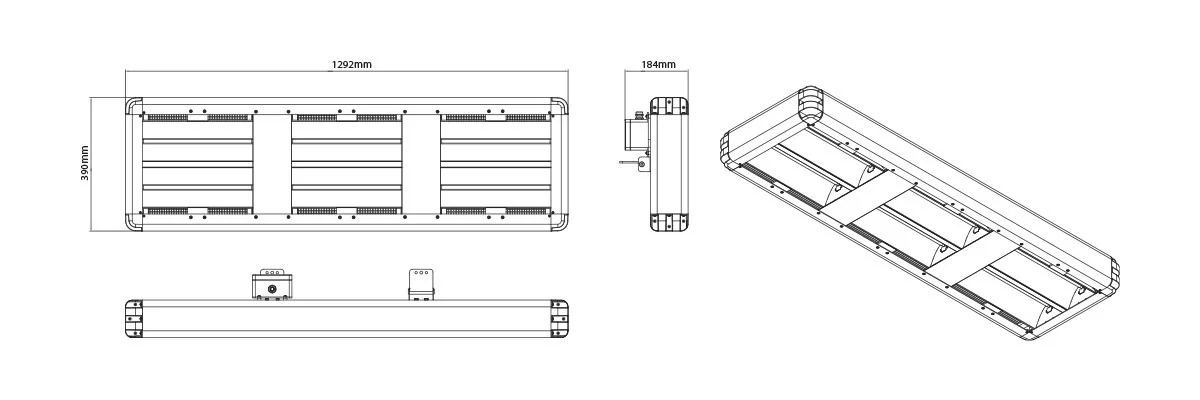

• Dimensions (W × H × D): 390 × 184 × 1292 mm
• Weight: 14 kg

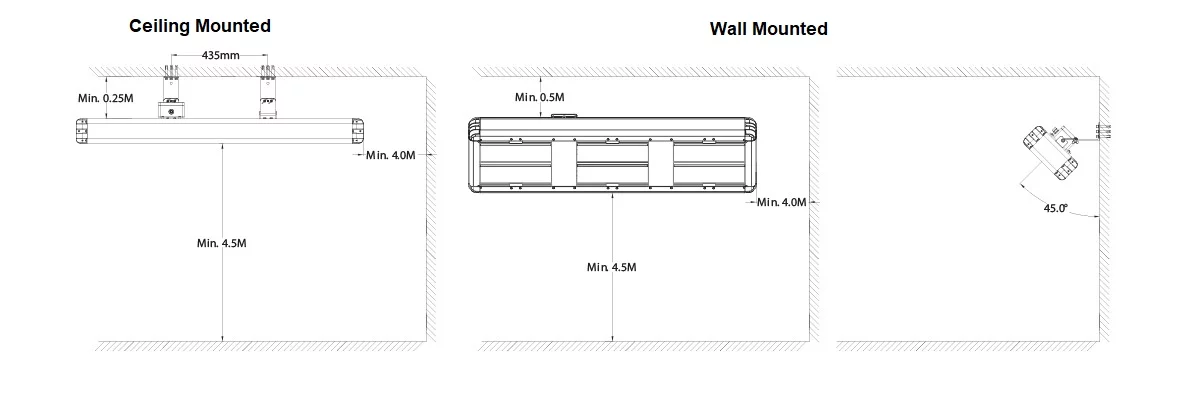

• Minimum Mounting Height (from floor): 4.0 m
• Minimum Clearance (ceiling): 0.25 m
• Minimum Clearance (side wall): 0.4 m
• Housing Material: Anodised aluminium
• Lamp Type: Ultra-low-glare quartz infrared
• Lamp Length: 382 mm
• Warranty: 2 years (manufacturer warranty)(heater only; lamp not covered)
