4kW Horizontal Industrial Infrared Heater | Single Phase, IP65, 19.14 m² Coverage

Description

The 4kW Industrial Infrared Heater is a powerful, energy-efficient heating solution designed for industrial and commercial environments. Using advanced short-wave infrared technology, it provides instant radiant heat directly to people and surfaces, eliminating energy waste from heating the surrounding air.

With a coverage area of up to 19.14 m², this single-phase heater is ideal for workshops, warehouses, and production areas where fast, reliable heat is essential. Combining ultra-low-glare infrared lamps, robust construction, and IP65 protection, the Shadow 4kW ensures efficient operation even in challenging conditions.

Delivering up to 90% energy savings compared to traditional convection or gas systems, it offers exceptional performance, durability, and adaptability for both indoor and sheltered outdoor spaces.

Key Features

• Instant Radiant Heat Output – Provides direct warmth to people and objects with no warm-up time.
• High Energy Efficiency – Uses short-wave infrared to reduce energy waste by up to 90%.
• Ultra-Low-Glare Lamps – Industry-leading 382 mm lamps deliver powerful heat with minimal visible light.
• Single-Phase Operation – Simple electrical installation with no specialist setup required.
• Compact, Durable Design – IP65-rated aluminium housing ensures protection against dust and moisture.
• Flexible Mounting Options – Can be wall- or ceiling-mounted to optimise coverage in any space.
• Consistent Heat Distribution – Even warmth without drafts or air movement, ideal for open spaces.
• Zoning Compatibility – Integrates with controllers for precise, energy-saving temperature management.
• Minimal Maintenance – Solid-state infrared technology ensures reliability and long service life.
• 2-Year Manufacturer Warranty – Backed by reliable support and proven performance.

Applications

The 4kW Industrial Infrared Heater is suitable for a wide range of commercial and industrial heating applications, including:

• Workshops and garages
• Manufacturing and assembly areas
• Warehouses and storage facilities
• Retail and commercial units
• Sports and leisure venues
• Agricultural and horticultural buildings
• Semi-outdoor areas such as loading bays or covered patios

Ideal for areas where targeted, efficient, and controllable heating is required.

Technical Specifications

• Model: 4kW Industrial Infrared Heater
• Voltage: 220–240 V AC
• Phase Supply: Single Phase
• Total Power Output: 4 kW
• Lamps: 2 × 2 kW short-wave infrared (382 mm each)

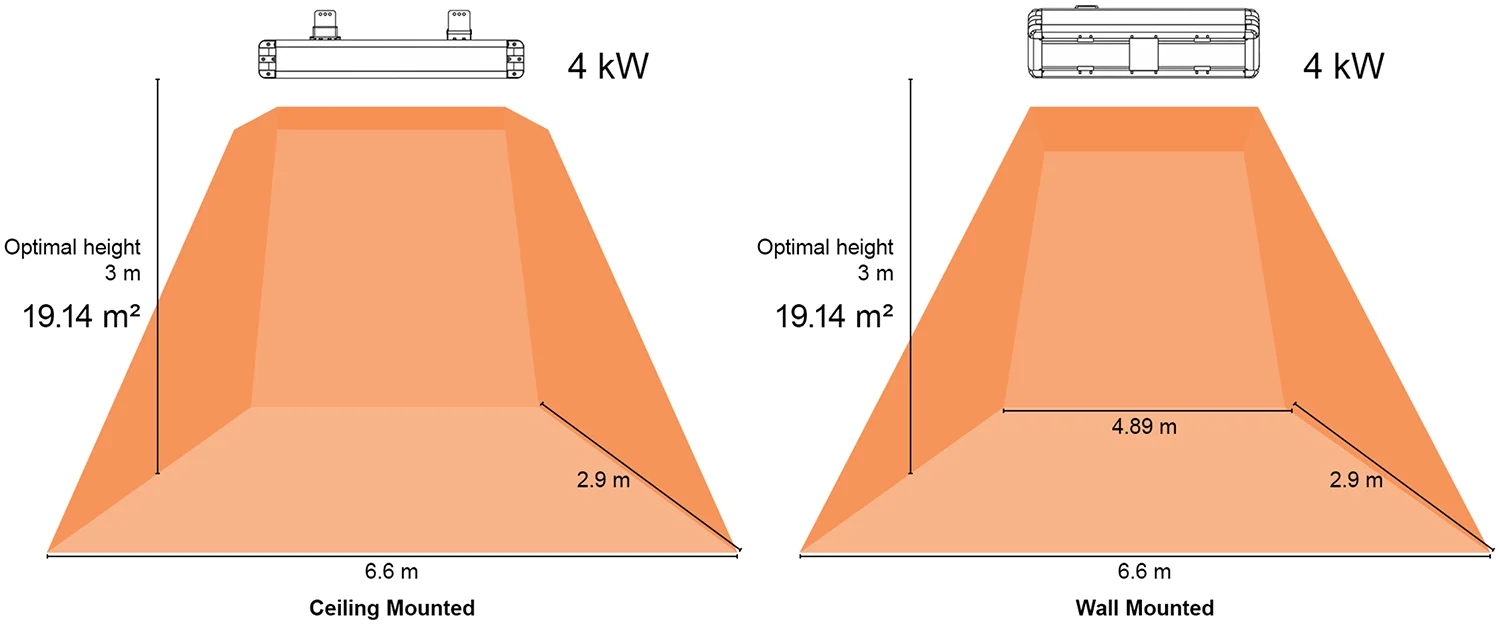

• Coverage Area: 19.14 m²
• Current per Phase: 17 A
• Ingress Protection: IP65 (dust and moisture resistant)

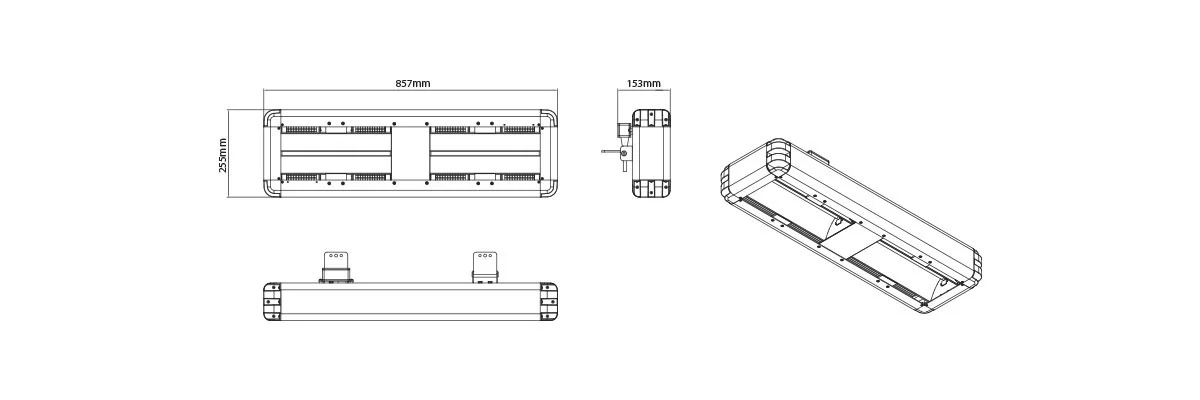

• Dimensions (W × H × D): 255 × 153 × 857 mm
• Weight: 6.1 kg

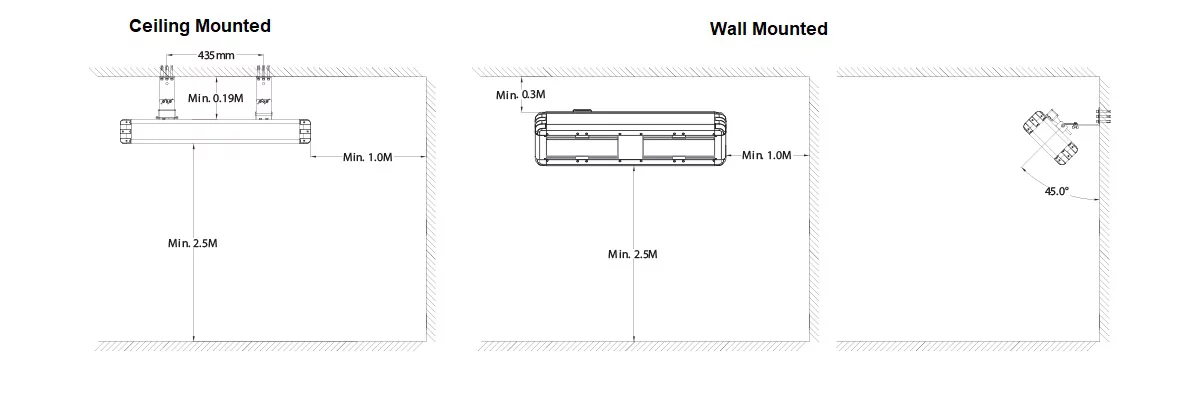

• Minimum Mounting Height (from floor): 2.5 m
• Minimum Clearance (ceiling): 0.5 m
• Minimum Clearance (side wall): 0.1 m
• Material: Anodised aluminium housing
• Lamp Length: 382 mm
• Lamp Warranty: Not covered
• Total Warranty: 2 years (manufacturer warranty)(heater only; lamp not covered)
