3kW Vertical Industrial Infrared Heater: Targeted, IP65 Warmth for Commercial Spaces

The 3kW Vertical Industrial Infrared Heater is a compact, single-phase heating solution designed for industrial, commercial, and warehouse environments that require efficient, targeted warmth without the complexity or cost of a three-phase system.

Using advanced short-wave infrared technology, it delivers instant radiant heat directly to people and objects—eliminating the energy losses associated with conventional convection heating. With a coverage area of up to 30m², the Shadow 3kW is perfect for assembly lines, loading bays, workshops, and other medium-sized work areas where consistent, controllable heat is essential.

Engineered for performance, the heater’s ultra-low glare lamps and IP65-rated housing provide reliable operation in demanding environments. The vertical dual-lamp configuration enhances radiant distribution, making it ideal for installations requiring focused downward heat such as in production lines or sheltered outdoor areas.

Key Features

• Instant Infrared Heat: Provides immediate warmth to people and surfaces—no heat-up time required.
• Energy Efficient: Achieves up to 90% energy savings versus conventional heating systems by focusing heat where it’s needed.
• Ultra-Low Glare Technology: Industry-leading lamps deliver powerful infrared output with minimal visible light.
• Compact Vertical Design: Optimised for mounting in tight or high-ceiling areas for maximum radiant coverage.
• Flexible Installation: Wall or ceiling mountable, with included cable and UK plug for initial setup (hard-wiring recommended).
• Durable Construction: IP65-rated housing ensures protection against dust, moisture, and impact.
• Low Maintenance: Long-life lamps and solid-state operation reduce servicing requirements.
• Zoning Compatible: Can be paired with controllers to manage heat zones, improving efficiency and comfort.
• 2-Year Warranty: Direct manufacturer warranty ensures reliability and peace of mind.

Applications

The 3kW Vertical Industrial Heater is ideal for environments requiring reliable, efficient, and instant radiant heating, such as:

• Warehouses and logistics facilities
• Factory production lines and assembly areas
• Workshops and garages
• Retail loading bays
• Indoor sports venues and gymnasiums
• Agricultural buildings and greenhouses
• Churches, zoos, and exhibition halls
• Outdoor sheltered commercial areas

Technical Specifications

• Model:  3kW Vertical Industrial Infrared Heater (#903676)
• Voltage: 220–240V AC
• Phase: Single
• Power Output: 3kW (2 × 1.5kW lamps)
• Current per Phase: 13A

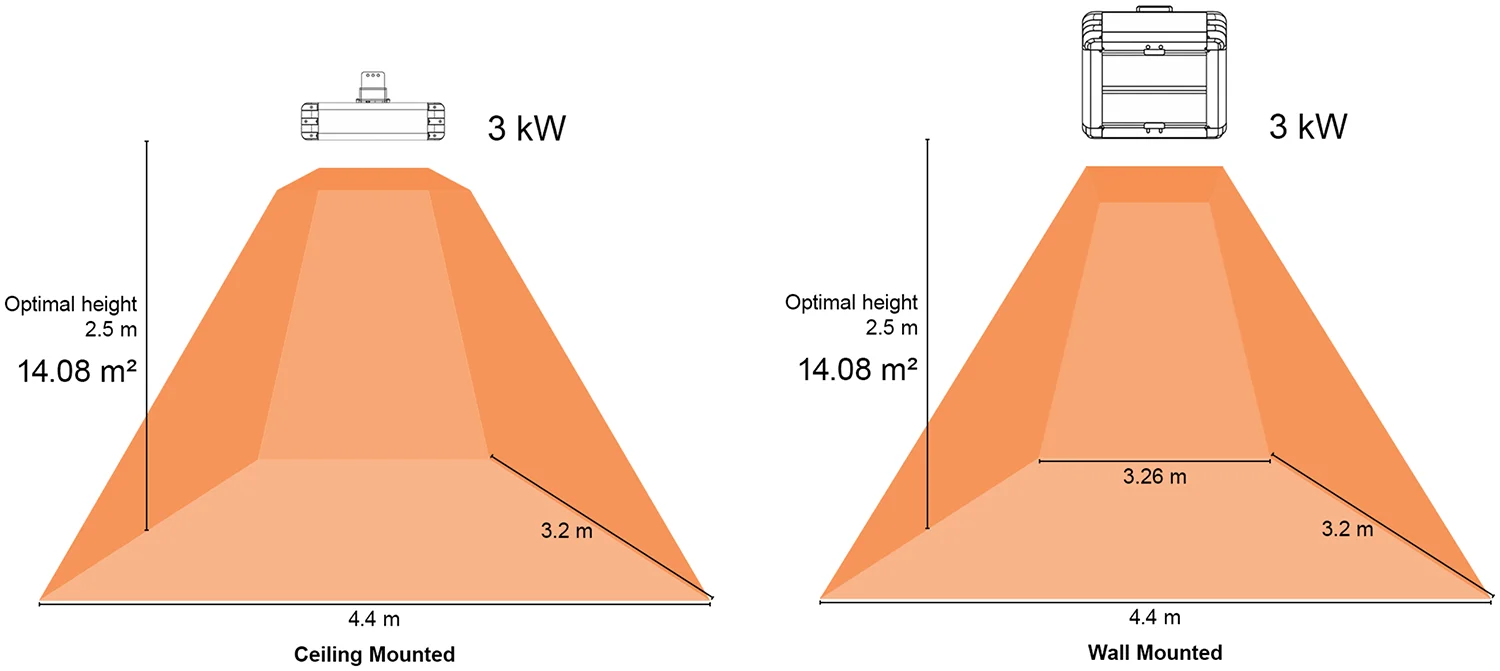

• Coverage Area: Up to 30m²
• Ingress Protection: IP65 (dust- and water-resistant)

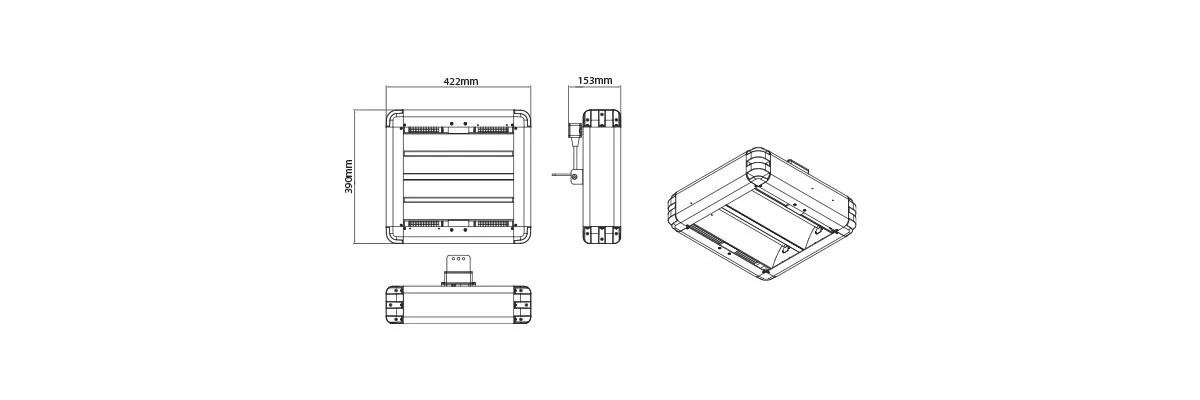

• Dimensions (W × H × D): 390 × 111 × 422 mm
• Weight: 6.1 kg
• Lamp Type: Ultra-low glare infrared (382mm length)
• Cable: 1.8m (supplied with UK plug for testing)

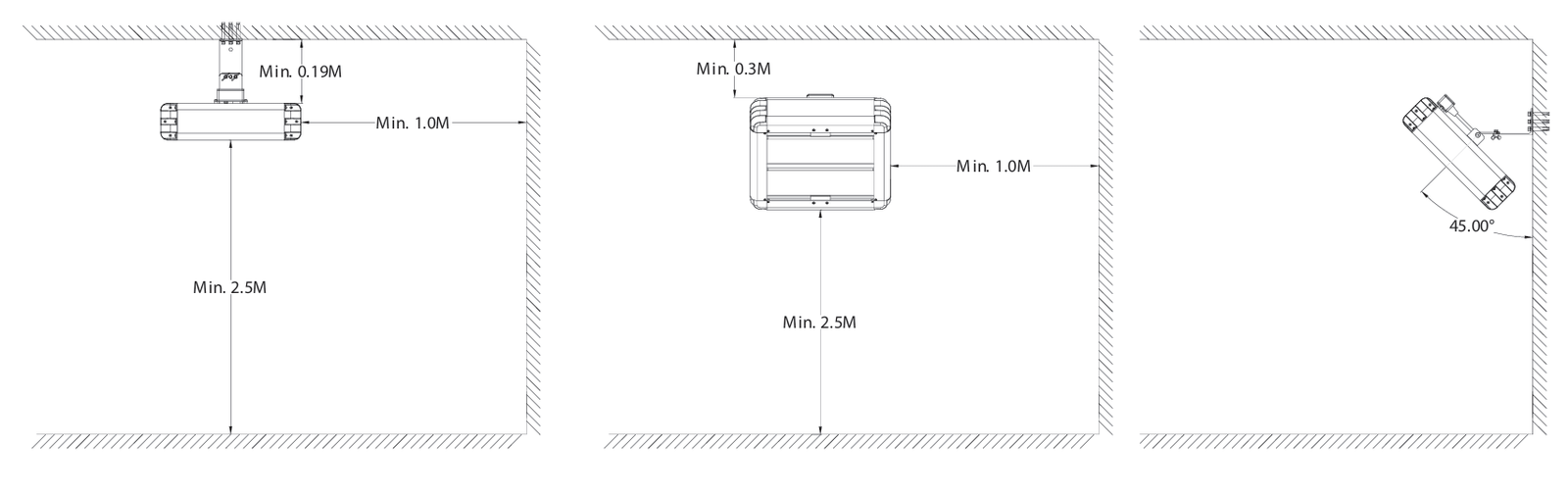

• Minimum Mounting Height (from floor): 2.5 m
• Minimum Clearance from Ceiling: 0.19 m
• Minimum Distance from Side Wall: 1 m
• Construction: Robust aluminium housing with vertical dual-lamp design
• Warranty: 2 years (manufacturer), lamp excluded
• Energy Efficiency: Up to 90% savings compared to convection systems
