Description

4.5kW Vertical Industrial Infrared Heater: Targeted, IP65 Warmth for Commercial Spaces

The 4.5kW Vertical Industrial Infrared Heater delivers instant, high-performance radiant heat for commercial and industrial environments. Using advanced short-wave infrared technology, it heats people and surfaces directly—rather than the air—offering up to 90% energy savings compared to conventional systems.

Designed for single-phase operation, the 4.5kW model features three 1.5kW vertical lamps that provide fast, uniform heating across a coverage area of approximately 40m². Compact, durable, and IP65-rated, it’s built for tough industrial use, ensuring consistent performance even in draughty or semi-open spaces.

This model combines low running costs, low glare, and flexible mounting options, making it ideal for workshops, warehouses, and production environments requiring reliable and efficient infrared heating.

Key Features

• 4.5kW Infrared Output – Three 1.5kW short-wave lamps deliver rapid, even heat.
• Instant Radiant Heating – Heats people and surfaces directly with zero preheat time.
• Ultra-Low Glare Technology – Produces minimal visible light while maintaining high heat output.
• Single-Phase Power – Simplifies installation with no specialist electrical setup.
• Energy Efficiency – Reduces heating costs by over 90% compared to traditional convection systems.
• Flexible Mounting Options – Wall, ceiling, or angled mounting for optimal coverage.
• IP65-Rated Protection – Weather and dust resistant for use in industrial and semi-outdoor environments.
• Durable Construction – Built with corrosion-resistant materials for long operational life.
• Zoning & Smart Control Compatible – Integrates with controllers for energy optimisation in large facilities.
• 2-Year Warranty – Backed by manufacturer assurance for reliability and peace of mind.

Applications

The Shadow 4.5kW Vertical Infrared Heater is ideal for:

• Warehouses and logistics hubs
• Manufacturing and assembly areas
• Workshops and vehicle bays
• Sports facilities and gymnasiums
• Agricultural and horticultural buildings
• Large retail areas and exhibition halls
• Outdoor covered spaces and industrial work zones

Technical Specifications

• Model: Shadow 4.5kW Vertical Industrial Infrared Heater
• Voltage: 220–240V AC
• Phase Supply: Single Phase
• Total Power Output: 4.5kW
• Lamps: 3 × 1.5kW short-wave infrared lamps

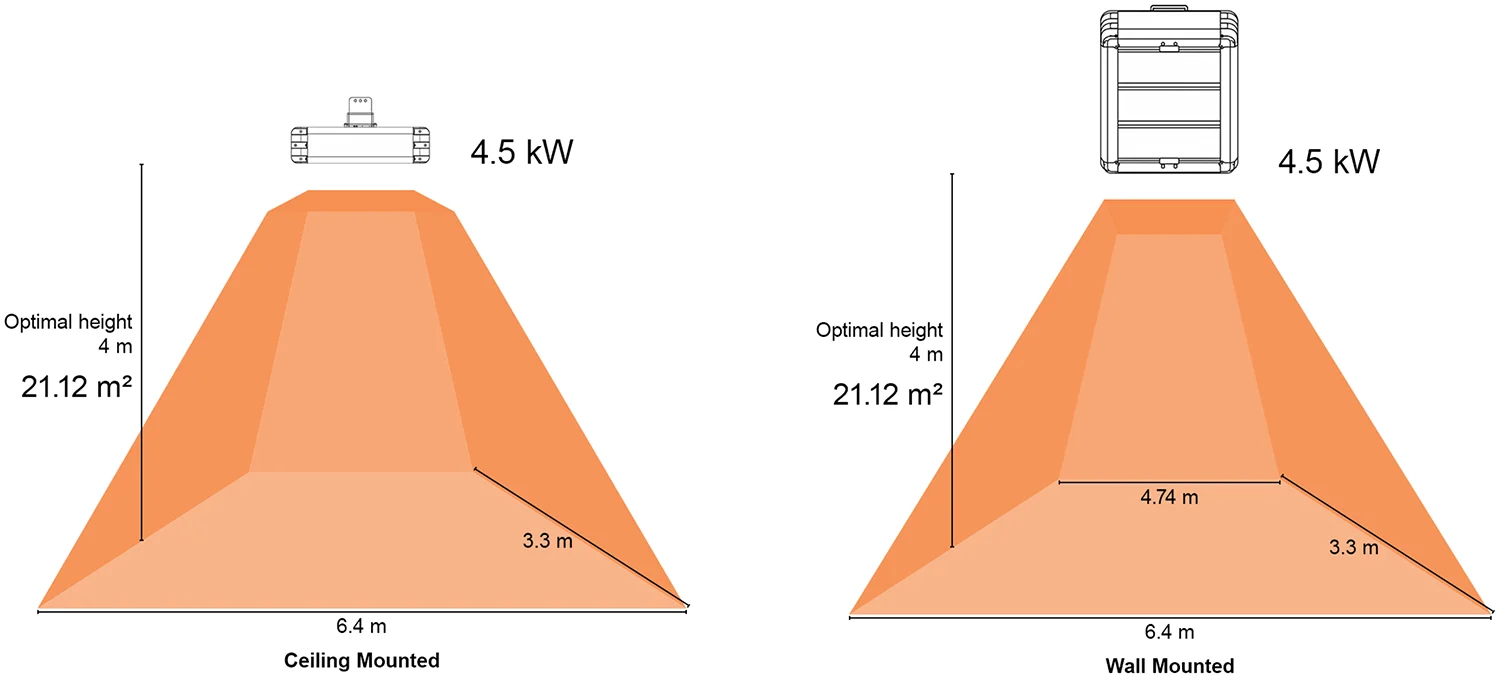

• Coverage Area: Up to 40m²
• Current per Phase: 20A
• Ingress Protection: IP65

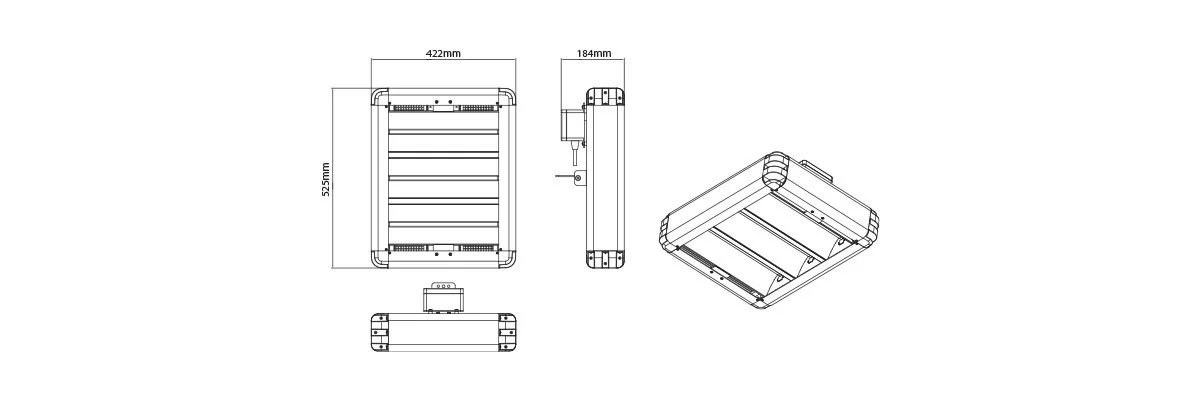

• Dimensions (W × H × D): 422 × 111 × 525 mm
• Weight: 8.4 kg
• Lamp Length: 382 mm

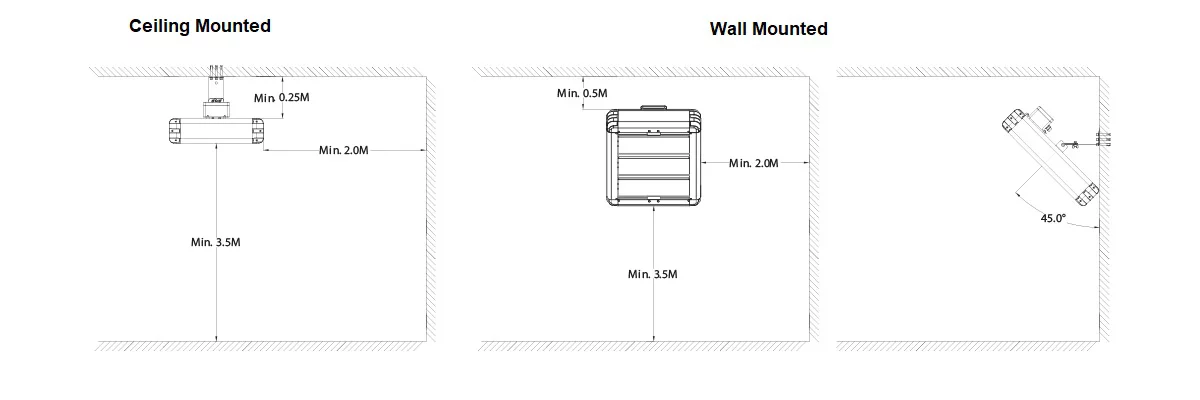

• Minimum Mounting Height (from floor): 3.0 m
• Minimum Clearance (ceiling): 0.25 m
• Minimum Clearance (side wall): 2.0 m
• Material: Anodised aluminium housing
• Cable: 1.8 m cable supplied with UK plug (hard-wiring recommended)
• Warranty: 2 years (Manufacturer) (heater only; lamp not covered)
