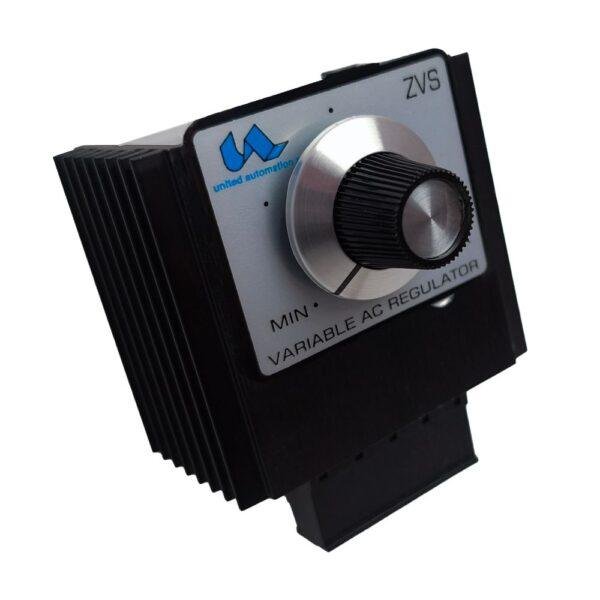

VS 16DVS 16A Dual-Voltage Switched Potentiometer Energy Regulator

The ZVS 16DVS (X10851) Switched Potentiometer Energy Regulator is a high-performance, dual-voltage burst-fired controller designed for precise proportional power regulation of resistive and inductive loads. Compact, durable and engineered for professional environments, this 16A regulator delivers smooth, accurate control across a full 0–100% output range. Its advanced zero-voltage switching (ZVS) technology ensures reliable operation, minimal electrical noise and extended equipment life.

Using synchronised burst firing, the ZVS 16DVS transmits complete sine-wave cycles to the load, preventing sudden current fluctuations and reducing RFI without the need for additional filters. With adjustable block lengths and a 1–30 second variable duty cycle, it offers exceptional flexibility for a wide range of heating, catering and industrial applications.

Key Features

• Wide Dual-Voltage Input (110–230V AC): Compatible with various power systems for global use.

• High Load Rating: Supports resistive loads of 0.1–3.7kW at 230V and 0.1–1.8kW at 110V AC.

• 25A Surge Capability: Built with a robust power device to withstand high inrush current events.

• Zero Voltage Switching: Improves reliability and significantly reduces RFI, removing the need for remote filtering.

• Durable, Secure Connections: Wire-protective screw terminals ensure long-lasting, safe installation.

• Adjustable Duty Cycle: Rear trimmer allows customisable 1–30 second duty cycles for precise control.

• Burst-Fired Control: Delivers full sine-wave cycles to the load, reducing stress on components and extending service life.

• Compact, Rugged Enclosure: Optimised for professional environments where reliability is essential.

Applications

The ZVS 16DVS Energy Regulator is ideal for precise manual control across a wide variety of commercial and industrial systems, including:

• Ovens

• Fish & chip fryers

• Restaurants & hospitality equipment

• Quartz lamps and heat lamps

• Moulding machines

• Drying equipment

• Inductive loads such as transformers and motors

Its versatility makes it a popular choice across catering, heating, manufacturing and process-control industries.

Technical Specifications

• Maximum RMS On-State Current: 16A

• Peak One-Cycle Surge Current: 200A

• AC Supply Voltage Range (50/60Hz): 100–250V

• I²t for Fusing: 128 A²s

• Weight: Approx. 105g

• Maximum CSA Cable Entry: 2.5mm²

• Maximum Peak Repetitive Voltage: 600V

• Power Consumption: 6W

• Maximum Recommended Unit Temperature: 70°C

• Isolation Voltage: 2.5kV RMS

Dimensions:

• Shaft Diameter: 6.3mm (¼ inch)

• Shaft Projection from Bush: 13mm

• Bush Length: 7mm

• Fixing Hole Diameter: 10mm
