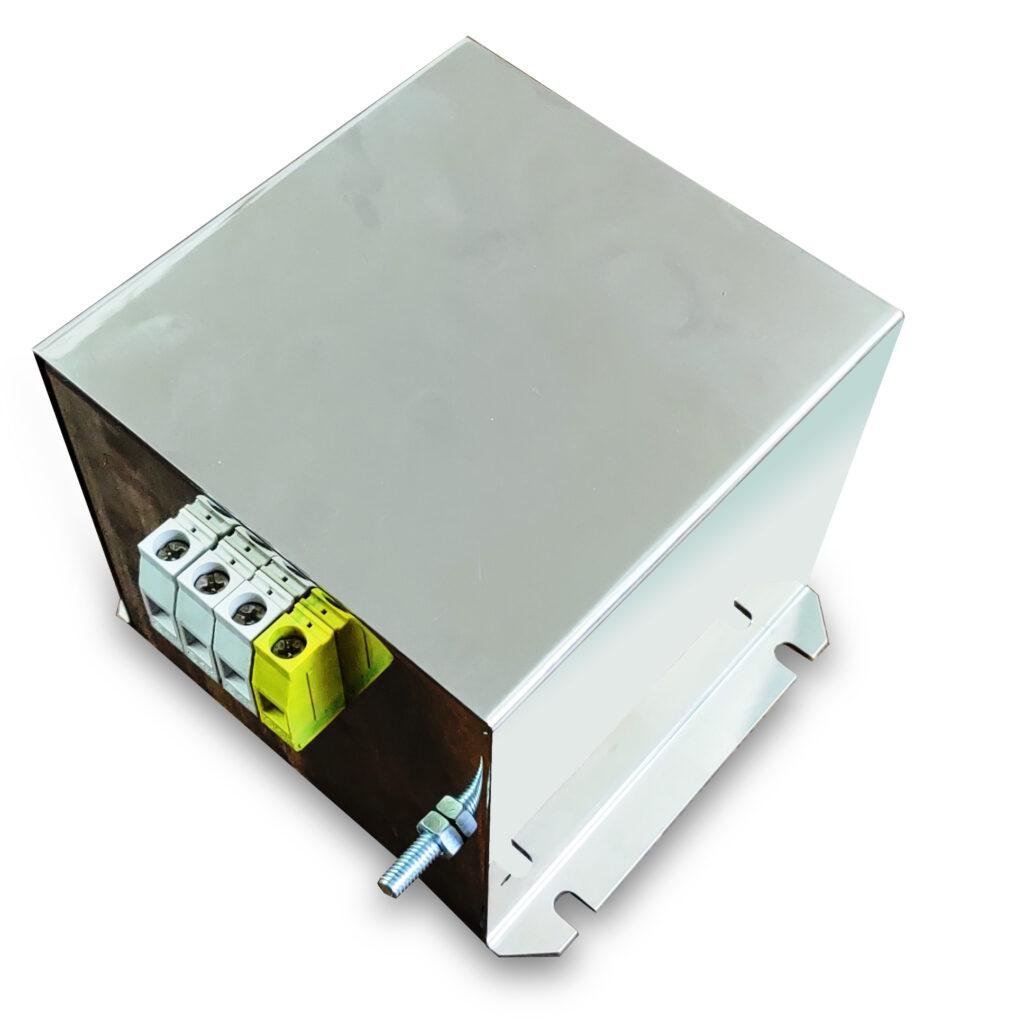

Single phase Chassis Mount EMI/RFI filter 70 series, 36A, Screw

Description

The EN 2070 Dual-Stage Filter is a premium solution designed to deliver exceptional electromagnetic interference (EMI) suppression in critical applications. With its advanced features and robust construction, this filter ensures compliance with the most stringent regulatory standards.

Key Features and Benefits (70 Series):

• Superior Performance: Offers unparalleled conducted attenuation, thanks to high-saturation chokes and excellent thermal behaviour.
• Versatile Design: Available in both A and B versions to meet the specific requirements of safety-critical and medical applications.
• Easy Installation: The dual-stage design and chassis mounting options simplify installation.
• Customisable Options: Choose from various terminal styles and rated currents to suit your application.
• Safety and Reliability: Certified to UL 1283 and EC/EN60939, ensuring safety and compliance.

Technical Specifications (36A Model):

• Rated voltage: 250VAC, 50/60Hz
• Operating frequency: DC to 400Hz
• Rated current: 36A
• Test voltage:
  • L-GND 2550 VDC for 2 sec
  • L-GND 3500 VDC for 2 sec (B types)
  • L-N 1100 VDC for 2 sec
• Temperature range: -25°C to +100°C
• Maximum Leakage Current:
  • 0.43mA @ 120VAC
  • 0.74mA @ 250VAC
• Climate Class: 25/100/21
• Certifications: UL 1283, EC/EN60939
• Overload Current: 1.5x Rated current for 1 minute
• Flammability: UL 94V-2

Applications:

• Industrial Equipment: Machinery, building automation, and motor drives
• Consumer Goods: Household appliances, electronics, and datacom equipment
• Medical Devices: Medical equipment requiring stringent EMI compliance
• Electronics: Data processing equipment, office automation, and various noisy applications

Choose the EN 2070 Dual-Stage Filter for uncompromising EMI suppression and reliable performance in your most demanding applications.
