4.5kW Horizontal Industrial Infrared Heater with IP65 and Ultra-Low Glare

The 4.5kW Horizontal Industrial Infrared Heater is a high-performance, energy-efficient heating solution engineered for large industrial and commercial environments. Designed with three horizontally mounted ultra-low-glare lamps, this heater provides instant, targeted radiant heat to people and surfaces — not the surrounding air — delivering energy savings of up to 90% compared to traditional convection systems.

Operating on a single-phase 220–240V supply, the 4.5kW model offers fast heat-up times, low running costs, and exceptional versatility for spaces such as workshops, production areas, and warehouses. Its short-wave infrared technology ensures deep, consistent warmth even in drafty or partially open environments.

Built with robust construction, IP65 protection, and flexible mounting options, the  4.5kW heater guarantees long-lasting performance and low maintenance, making it a trusted choice for modern industrial heating applications.

Key Features

• Instant Heat Output – Reaches operating temperature within seconds for immediate warmth.
• High Energy Efficiency – Infrared technology delivers up to 90% energy savings compared to traditional heating.
• Ultra-Low-Glare Lamps – Equipped with industry-leading 382 mm short-wave infrared lamps for comfortable radiant heat.
• Single-Phase Supply – Easy installation with no special electrical setup required.
• Rugged IP65 Design – Dust- and moisture-resistant for industrial or semi-outdoor environments.
• Flexible Mounting Options – Can be wall- or ceiling-mounted horizontally for optimal heat coverage.
• Even Heat Distribution – Provides uniform warmth without air movement or heat loss.
• Zoning & Control Ready – Compatible with thermostatic and zoning controllers for precise energy management.
• Minimal Maintenance – Long lamp life and durable housing ensure low operational costs.
• Manufacturer-Backed Reliability – Supplied with a 2-year warranty for peace of mind.

Applications

The  4.5kW Horizontal Industrial Infrared Heater is ideal for a wide range of commercial and industrial environments, including:

• Warehouses and storage facilities
• Manufacturing and production lines
• Workshops and vehicle service bays
• Agricultural and horticultural buildings
• Indoor sports facilities and gymnasiums
• Distribution and dispatch areas
• Large retail or commercial spaces
• Semi-outdoor or partially enclosed areas

Perfect for targeted, reliable, and efficient heating where conventional systems are ineffective or wasteful.

Technical Specifications

• Model:  4.5kW Horizontal Industrial Infrared Heater
• Voltage: 220–240 V AC
• Phase Supply: Single Phase
• Total Power Output: 4.5 kW
• Lamps: 3 × 1.5 kW short-wave infrared (382 mm)
• Coverage Area: 22.12 m²
• Current per Phase: 20 A
• Ingress Protection: IP65 (dust and moisture resistant)

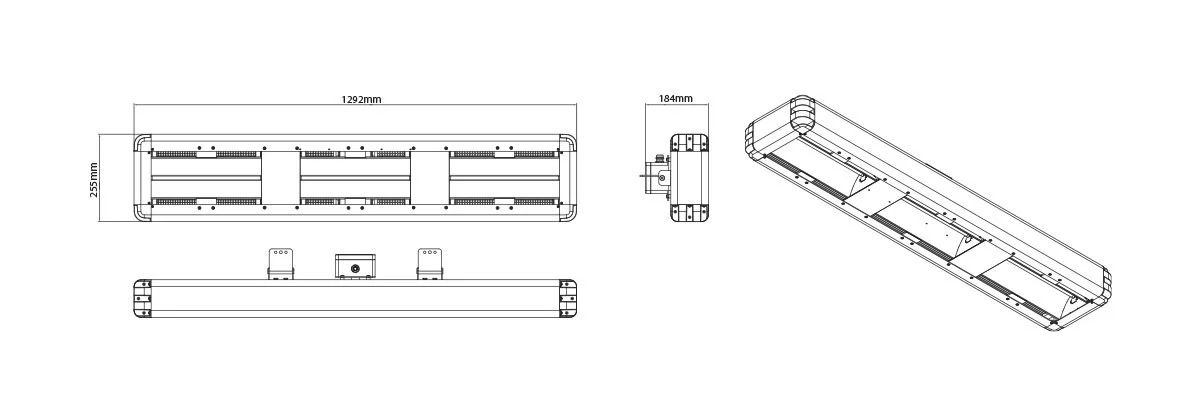

• Dimensions (W × H × D): 255 × 184 × 1292 mm
• Weight: 8.4 kg

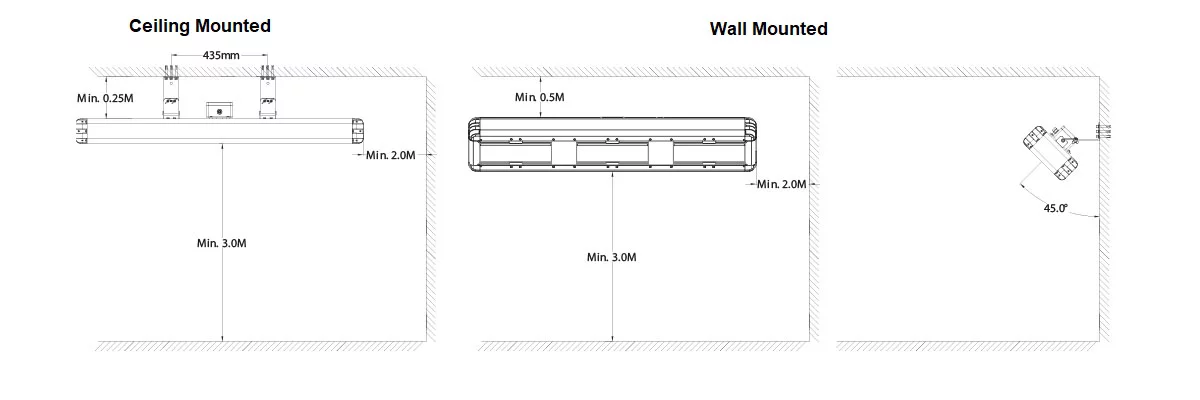

• Minimum Mounting Height (from floor): 3.0 m
• Minimum Clearance (ceiling): 0.25 m
• Minimum Clearance (side wall): 0.2 m
• Material: Anodised aluminium housing
• Lamp Length: 382 mm
• Lamp Type: Ultra-low-glare quartz infrared
• Warranty: 2 years (manufacturer warranty)(heater only; lamp not covered)
