Description

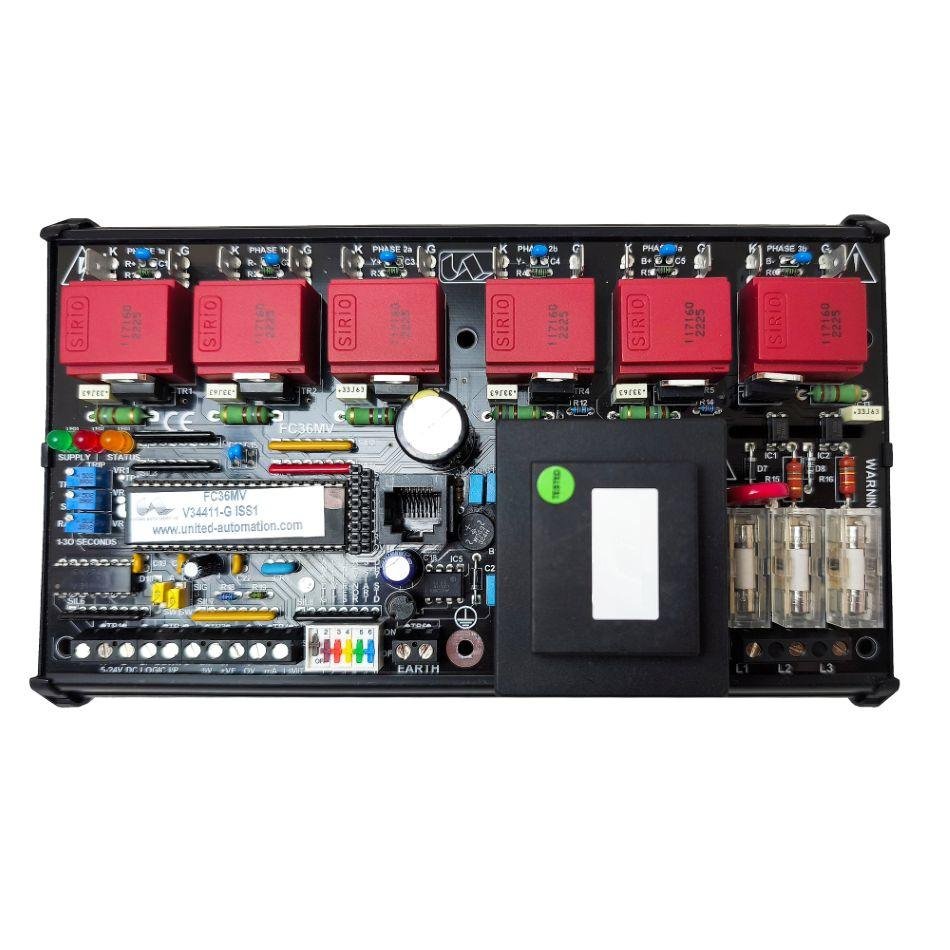

FC36MV 230V High Power 3-Phase Dual Mode Thyristor Driver (c/w DIN Housing)

The FC36MV 230V Dual Mode Firing Board (c/w DIN Housing) is a high-performance, microprocessor-based three-phase thyristor driver designed for precise and reliable SCR (Silicon Controlled Rectifier) control in demanding industrial power control applications. Supplied complete with a robust DIN rail mounting enclosure, it offers a compact, protected solution that simplifies installation within industrial control panels and OEM equipment.

Configured for 230V AC operation, the FC36MV supports phase-angle, burst-fire, and combination firing modes, providing flexible control of both resistive and inductive loads. Featuring automatic phase rotation correction, phase-loss detection, opto-isolated control inputs, adjustable ramp control, and over-current protection, it delivers dependable performance across a wide range of industrial heating, power conversion, and motor control systems.

Key Features

The FC36MV 230V High Power Three-Phase Thyristor Driver combines intelligent SCR firing technology with advanced protection features and a DIN rail enclosure for quick installation and long-term reliability.

• 230V AC supply version
• Supplied complete with DIN rail mounting housing
• Microprocessor-based high-power three-phase thyristor driver
• Auto phase rotation correction and phase-loss detection
• Switch-selectable phase reversal
• Supports Phase Angle, Burst Fire and Combination firing modes
• Opto-isolated analogue and digital control inputs
• Selectable resistive or inductive load operation
• Adjustable soft-start ramp (0–30 seconds)
• Current limit and over-current protection
• LED status indicators for real-time diagnostics
• Simplified wiring without external phasing transformers

Technical Specifications

• Supply Voltage: 230V AC ±10%
• Frequency: 50/60Hz
• Controller Type: Microprocessor-based high-power three-phase thyristor driver
• Operating Modes: Phase Angle, Burst Fire or Combination firing
• Primary Fusing: Three HRC F1A ceramic fuses (20 × 5mm)
• Current Consumption: 650mA (full conduction)
• Initial Short-Circuit Gate Current: 750mA
• Sustaining Short-Circuit Gate Current: 400mA
• Initial Pulse Voltage: 9V
• Sustaining Pulse Voltage: 5V
• Pulse Train Frequency: 25kHz
• Voltage Control Inputs: 0–5V DC or 0–10V DC
• Input Resistance: 10kΩ / 20kΩ
• Current Control Input: 4–20mA
• Current Input Resistance: 270Ω
• Opto-Isolated Digital Inputs: 5–24V DC
• Ramp Adjustment: Adjustable from 0–30 seconds
• Current Limit / Over-Current Trip: 0–5V DC
• Load Selection: Resistive or Inductive (SW4 selectable)
• Operating Temperature: 0°C to +65°C
• Storage Temperature: 0°C to +65°C
• PCB Dimensions: 203mm (L) × 108mm (W) × 40mm (H)
• PCB Fixing Holes: 6 × M3.5 mounting holes
• PCB Fixing Centres: Two rows spaced 75mm apart with 96.5mm between mounting holes
• DIN Rail Enclosure: Included
• Enclosure Dimensions: 207mm (L) × 128mm (W) × 70mm (H)

Operation

The FC36MV generates precise firing pulses for high-power three-phase SCR assemblies, providing accurate control of industrial power systems. Users can select between phase-angle, burst-fire, or combination firing modes to suit the application and load characteristics.

The controller accepts analogue voltage, current, and opto-isolated digital control signals while automatically correcting phase rotation and monitoring for phase loss to maintain reliable operation. An adjustable soft-start ramp minimises electrical stress during power-up, while integrated current limiting and over-current protection help safeguard both the firing board and connected power devices.

Selectable load configuration allows the controller to operate efficiently with both resistive and inductive loads, making it suitable for a wide variety of industrial power control systems.

Applications

The FC36MV 230V High Power Thyristor Driver is ideal for:

• High-power three-phase SCR power controllers
• Industrial power supplies
• Half-controlled rectifiers
• Fully controlled rectifiers
• Furnace control systems
• Electroplating equipment
• Transformer control systems
• AC motor control
• DC motor control
• Soft starter systems
• Industrial heater controllers
• Industrial process automation
• Power conversion equipment
• Manufacturing machinery

Benefits

• High-performance SCR firing for demanding industrial applications
• DIN rail enclosure enables fast and secure installation
• Supports phase-angle, burst-fire and combination firing modes
• Automatic phase rotation correction simplifies commissioning
• Phase-loss detection improves operational reliability
• Eliminates the need for external phasing transformers
• Compatible with analogue and digital control systems
• Adjustable soft-start reduces electrical stress
• Built-in over-current protection improves equipment safety
• Suitable for both resistive and inductive loads
• Reliable microprocessor-based operation for long service life

Safety & Installation

Installation should only be carried out by suitably qualified personnel.

Always isolate all electrical supplies before installation or maintenance. Ensure the correct 230V AC supply version is installed for the intended application. Mount the supplied enclosure securely onto a suitable DIN rail within an electrical control panel.

Configure the required firing mode, load type and control inputs before commissioning. Install suitable external circuit protection in accordance with local electrical regulations and ensure adequate ventilation around the enclosure. Operate only within the specified temperature range.
