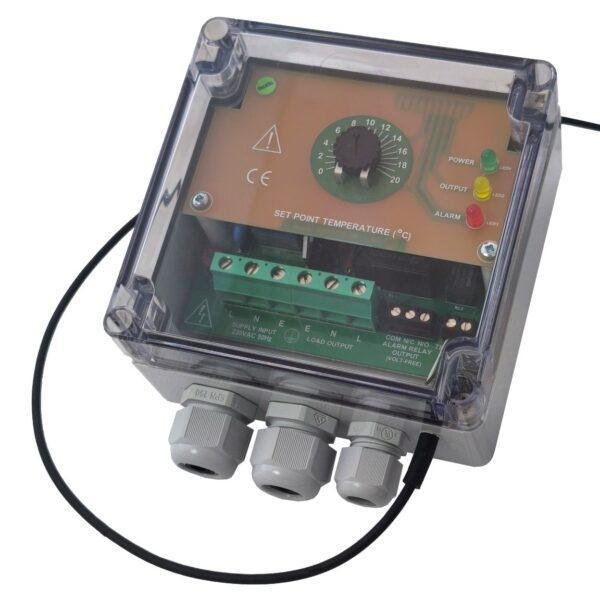

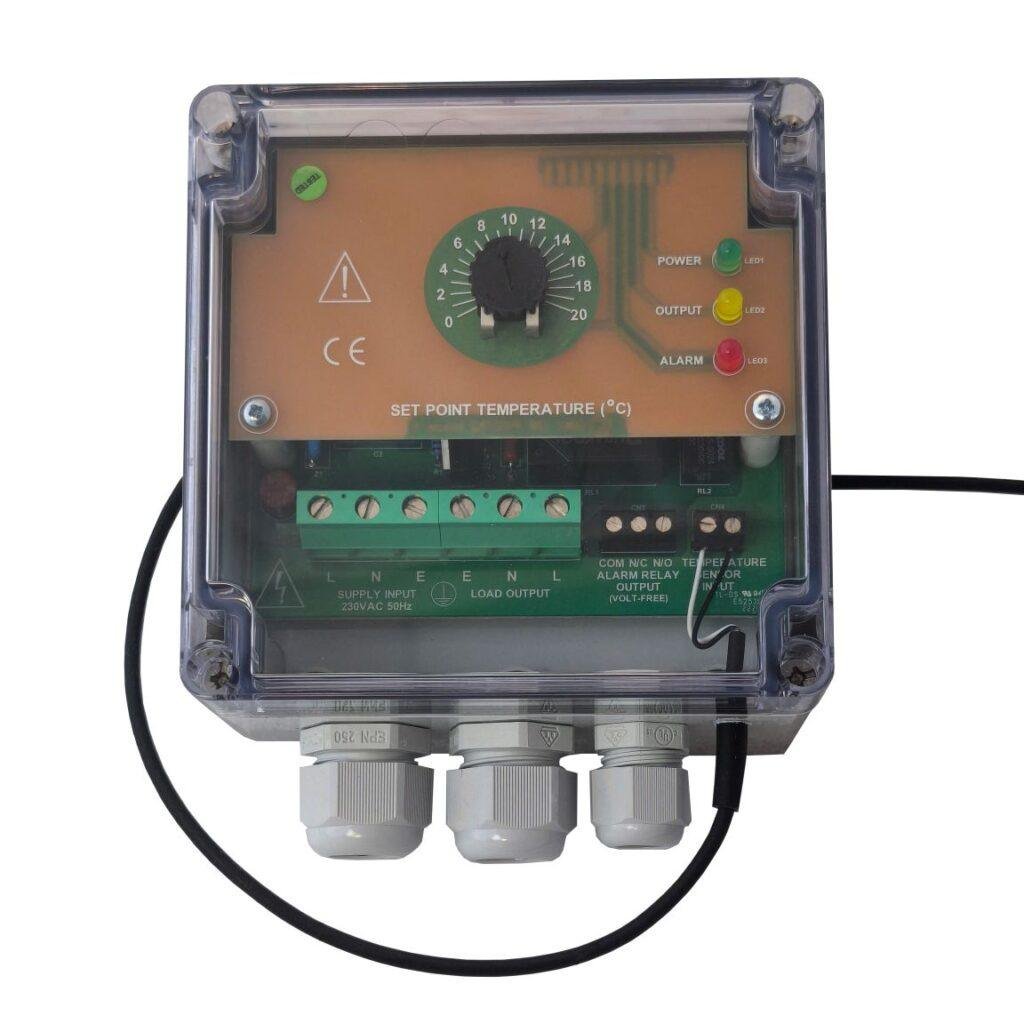

Envirostat FP6E | 6kW Frost Protection Thermostat | IP65

The Envirostat FP6E is a robust electronic frost-protection thermostat with alarm indication and temperature-control functions, designed to provide reliable, energy-efficient protection for pipework, tanks, and exposed equipment where insulation alone cannot prevent freezing. Suitable for controlling heater tapes and infrared (IR) quartz lamps, the FP6E automatically activates heating when temperatures fall below the selected set point, helping to prevent costly frost damage.

Featuring a built-in 2m encapsulated temperature sensor, soft-start switching, and an IP65-rated enclosure, the FP6E is built for dependable operation in demanding industrial and commercial environments. Its maintenance-free solid-state design delivers long-term reliability while minimising energy consumption by only operating heating when required.

Designed for quick installation and straightforward operation, the Envirostat FP6E is an ideal solution for frost protection applications across industrial, commercial, and outdoor installations.

Key Features

• Energy-efficient frost protection thermostat
• Controls heater tape and infrared (IR) quartz heaters
• Adjustable temperature range from -10°C to +10°C
• Built-in 2m encapsulated NTC temperature sensor
• Soft-start output reduces inrush current and extends heater life
• Maintenance-free solid-state reliability
• IP65-rated weatherproof enclosure
• 25A switching capacity (6kW maximum load)
• Power and output LED indicators
• Simple installation with rising clamp terminals
• Suitable for indoor and outdoor installations

Technical Specifications

Electrical

Supply voltage: 230V AC ±10%

Supply frequency: 50Hz

Maximum switching capacity: 6kW

Maximum load current: 25A

Current consumption: 16mA

Temperature Control

Temperature range: -10°C to +10°C

Temperature accuracy: ±1°C

Soft-start duration: 1 second

Sensor

Sensor type: Encapsulated 10kΩ NTC thermistor

Sensor cable length: 2 metres

Sensor monitoring: Open or short-circuit detection with output shutdown

Sensor terminal size: 0.1–1.5mm² rising clamp terminals

Indicators

Power LED
Indicates controller power status

Output LED
Indicates heating output operation

Terminal Connections

Supply terminals: 0.2–6mm² rising clamp terminals

Cable entry: 10.5mm and 8mm cable glands

(Round cable required to maintain IP65 protection.)

Environmental

Operating temperature: -20°C to +40°C

Ingress protection: IP65

Mechanical

Dimensions:
120mm (W) × 120mm (L) × 65mm (H)

Fixing centres:
110mm × 90mm

Mounting holes:
4 × 4.8mm

Applications

Ideal for protecting pipework and equipment from frost damage in applications including:

• Industrial facilities
• Warehouses
• Commercial buildings
• Outdoor pipework
• Water supply systems
• Heating trace systems
• Storage tanks
• Process pipework
• Plant rooms
• External mechanical services
