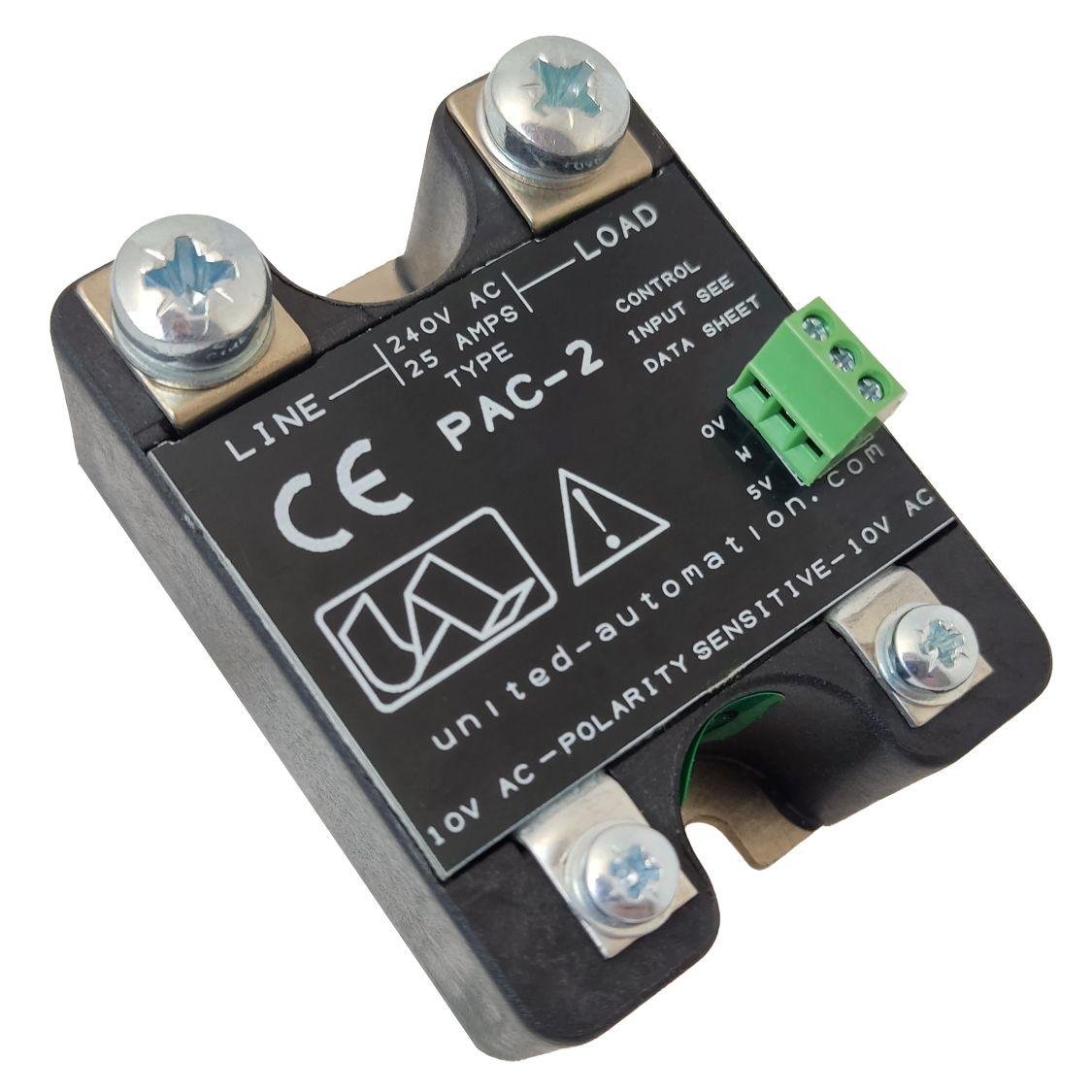

PAC2 Phase Angle Firing Module

PAC2-25 Phase Angle Firing Module High Power



£64.25 ex. VAT

Quantity discounts
1-4 5-9 10-19 20+
£64.25 £61.04 £57.99 £55.09

Description

Introducing the PAC2 High Power AC Phase Angle Controller, a compact powerhouse capable of regulating up to 6KW (25A) at 230Vac. This solid-state regulator, equipped with surface-mount technology, efficiently governs the power supplied to your load by controlling the phase angle of the AC supply. With a robust design and advanced features, the PAC2 offers solid state reliability, making it the ideal choice for a wide range of applications.

Key Features:

  • Solid State Reliability: Enjoy the assurance of solid-state reliability, ensuring consistent performance in diverse applications.
  • Surface-Mount Technology: Leveraging advanced surface-mount technology, the PAC2 is designed for optimal efficiency and performance.
  • Wide AC Supply Range: With a versatile 50 – 250V ac supply range, the PAC2 adapts seamlessly to different power environments.
  • Rugged and Compact Design: Built to withstand demanding conditions, the PAC2 combines rugged durability with a compact footprint.
  • 25A Current Capability: Unleash the full potential with a 25A current capability, further expandable with the use of an additional heatsink.
  • Internal Snubber: Eliminate “nuisance switching” with the internal snubber, enhancing overall reliability.

Applications: Versatile and suitable for a variety of applications, including:

  • Ovens
  • Fish & Chips Fryers
  • Restaurants
  • Hospitality Industry
  • Quartz Lamps / Heat Lamps
  • Moulder Machines
  • Dryers
  • Some Inductive Loads, e.g., Transformers and Motors

Suitable for most power control applications such as infrared, quartz and ceramic heaters/lighting.  It can also be used on inductive loads such as transformers and ac motors. A Transformer (T30201) is required to provide power and timing for the unit.

Empower your equipment design with the PAC2 High Power AC Phase Angle Controller, offering flexibility, reliability, and efficiency. Unleash the potential of your power regulation with this rugged and compact solution, ensuring optimal performance in diverse industrial applications.

TECHNICAL SPECIFICATIONS
AC Line Voltage Range50 – 250V @ 50/60Hz
Unit Limiting RMS Current25A
Peak One-cycle Surge (10ms)250A
Minimum Operating Current50mA
Isolation Voltage3.5kV RMS
Recommended Potentiometer5kΩ
Storage Temperature0 – 65°C
AC Aux Input Supply10V AC ±2V @ 50mA
I2t for Fusing250A2 s
Max. Peak Voltage600V AC
Leakage Current5mA
Control Signal (3-way 0.1” header)0-5V or 5V Aux O/P (for pot.)
Power Consumption1.2W
Max. Operating Temperature65°C
Weight63g
Further Dimensions
Dimensions57mm (D) x 44mm (W) x 28mm(H)
Fixing Centre’s48mm pitch with 2@ 4.5mm Ø (M4 clearance) holes
ConnectionsAC AUX Input Supply Terminals(2x) M3 x 10mm pozi set screws (for use with spade or eyelet crimp connectors)
AC Line Voltage Terminals(2x) M5 x 10mm pozi set screws (for use with spade or eyelet crimp connectors)

Additional information

Download the technical document for this product below.


Download Technical Datasheet
Weight 0.073 kg
